üApplication Function
Determining the folding resistance
Determining the folding resistance
üOptional Accessories (to purchase separately)

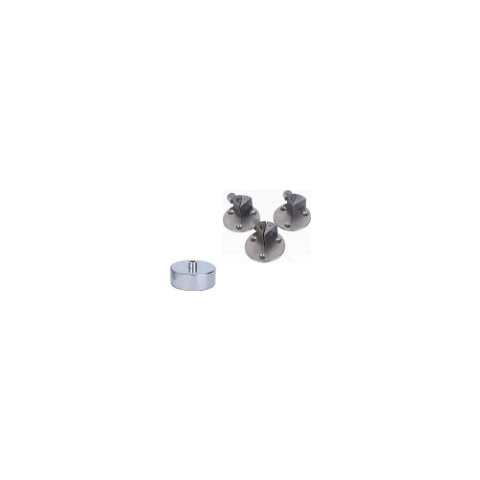

uFolding chuck (non-woven fabric measurement) x 1 set
uRS-232 Interface and computer software x 1 set
üStandards
ISO 5626, ISO 2493, TAPPI T511, GB/T 2679-5, GB/T 457, GB/T 1049
| Item | Details |
| Power supply | AC (110~240)V, (50/60) Hz, 100W |
| Working environment | (10~35)℃, humidity £85% |
| Measuring range | 0~99999 cycles |
| Folding angle | 135±2 degrees |
| Folding speed | 175±10 cycle/min |
| Tension range | 4.91/9.81/14.72 N |
| Folding suture specifications | 0.25, 0.50, 0.75, 1.00 mm |
| Display | Touch screen |
| Built-in thermal printer | |
| Communication interface | RS-232 |
| Dimensions | 260(W)x270(D)x520(H) mm |
| Net weight | 17 kg |
