Static torque sensor
靜態扭矩傳感器
Application應用範圍
It is widely used in static torque testing system of testing machine, torque wrench, steering machine, electric actuator, valve and transmission.
廣泛應用於試驗機、扭力扳手、轉向機、電動執行器、閥門、變速器的靜載扭矩、液壓等靜止扭矩測 試系統中
Characteristic特性
Compact structure, easy to install, protection grade:IP65, used for torque measurement of static and non continuous rotation.
結構緊湊，安裝方便，防護等級：IP65，用於靜態和非連續旋轉的扭矩測量。

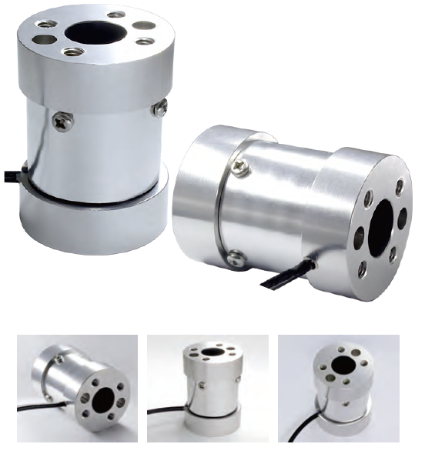

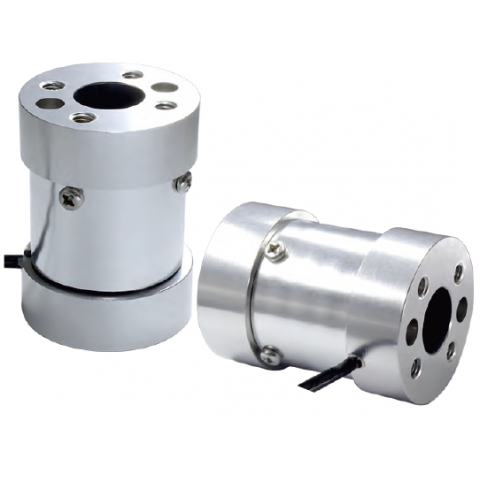

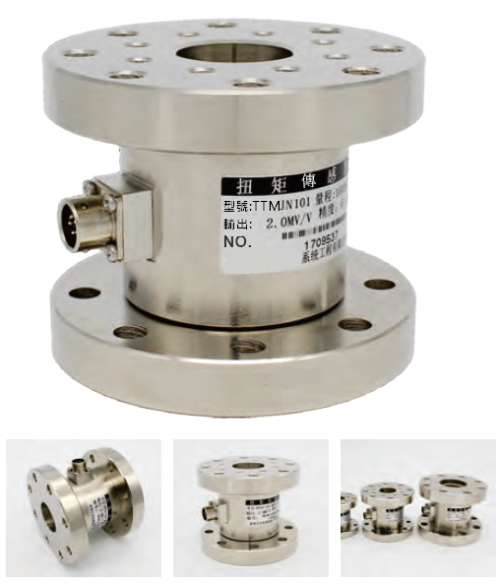

TTM-JN101

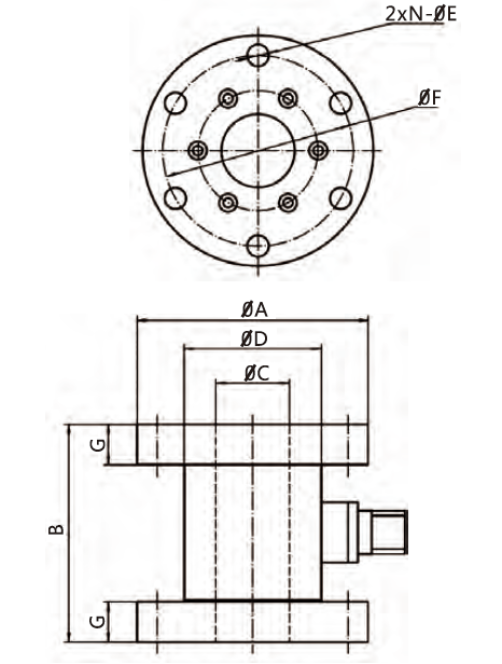

External Dimension外形尺寸
| Capacity(N.m) | A | B | C | D | E | F | N | G |
|---|---|---|---|---|---|---|---|---|
| 1-30 | 69 | 65 | 14 | 41 | 6.5 | 57 | 6 | 12 |
| 30-300 | 69 | 65 | 22 | 41 | 6.5 | 57 | 6 | 12 |
| 500-1000 | 98 | 80 | 30 | 60 | 8.5 | 80 | 8 | 15 |
| 2000-5000 | 125 | 96 | 45 | 79 | 13 | 105 | 8 | 20 |
| 10000 | 160 | 120 | 40 | 101 | 17 | 130 | 8 | 30 |
| 20000 | 210 | 120 | / | 112 | 22 | 165 | 8 | 30 |
| 100000 | 350 | 200 | / | 176 | 26 | 285 | 12 | 50 |
Parameters Table參數表
| Capacity量程 | 0-10000N.m | Material材質 | Alloy steel合金鋼 |
| Rated Output輸出靈敏度 | 1.0-2.0mV/V | Impedance阻抗 | 350/700Ω |
| Zero Balance零點輸出 | ±2%F.S. | Insulation絕緣電阻 | ≧5000MΩ/100VDC |
| Non-Linearity非線性 | 0.3%F.S. | Voltage電壓 | 5-15v |
| Hysteresis滯後 | 0.1%F.S. | Operating Temp Range工作溫度範圍 | -20-80℃ |
| Repeatability重複性 | 0.1%F.S. | Safe Overload安全過載 | 120% |
| Creep(30min)蠕變(30分鐘) | 0.1%F.S. | Maximum overload極限過載 | 150% |
| Temp Effect on Output溫度靈敏度漂移 | 0.05%F.S./10℃ | Cable specifications電纜線規格 | Ø5x3m |
| Temp Effect on Zero零點溫度漂移 | 0.05%F.S./10℃ | Cable ultimate pull電纜極限拉力 | 10kg |
| Response frequency響應頻率 | 10kHz | TEDS | Can choose可選 |
TTM-JN102

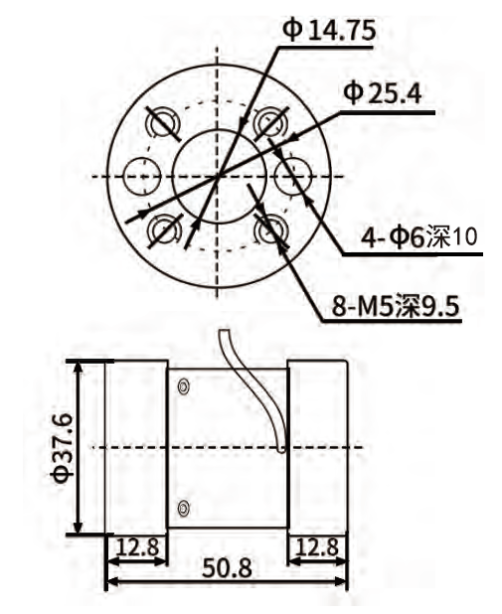

External Dimension外形尺寸
| Capacity(N.m) | 10 | 20 | 30 | 50 | 100 | 200 |
Parameters Table參數表
| Capacity量程 | 0-200N.m | Material材質 | Alloy steel合金鋼 |
| Rated Output輸出靈敏度 | 2.0±10%mV/V | Impedance阻抗 | 350Ω |
| Zero Balance零點輸出 | ±2%F.S. | Insulation絕緣電阻 | ≧5000MΩ/100VDC |
| Non-Linearity非線性 | 0.3%F.S. | Voltage電壓 | 5-15v |
| Hysteresis滯後 | 0.1%F.S. | Operating Temp Range工作溫度範圍 | -20-80℃ |
| Repeatability重複性 | 0.1%F.S. | Safe Overload安全過載 | 120% |
| Creep(30min)蠕變(30分鐘) | 0.1%F.S. | Maximum overload極限過載 | 150% |
| Temp Effect on Output溫度靈敏度漂移 | 0.05%F.S./10℃ | Cable specifications電纜線規格 | Ø5x3m |
| Temp Effect on Zero零點溫度漂移 | 0.05%F.S./10℃ | Cable ultimate pull電纜極限拉力 | 10kg |
| Response frequency響應頻率 | 10kHz | TEDS | Can choose可選 |

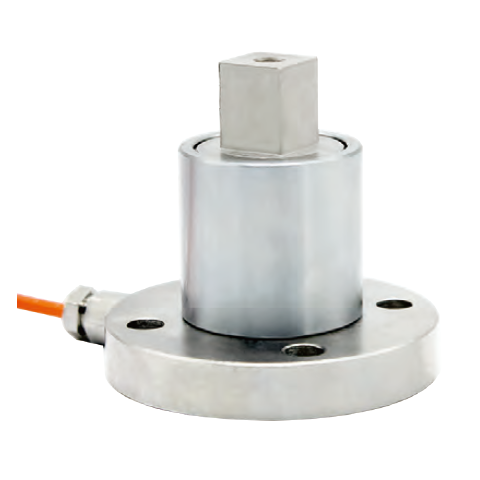

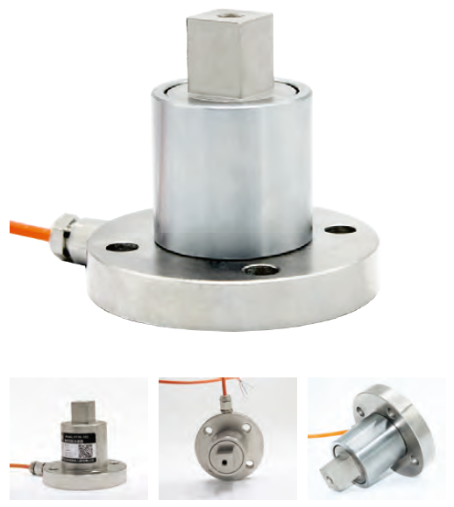

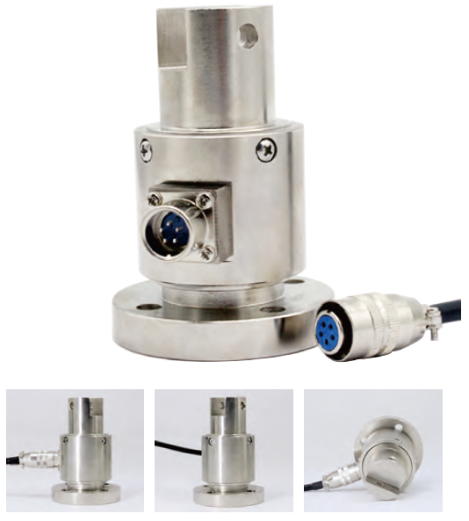

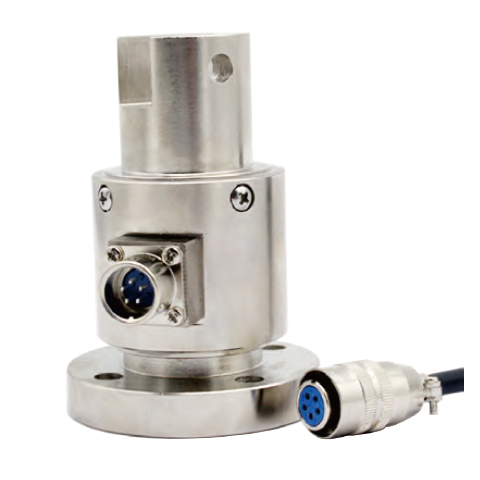

TTM-JN103

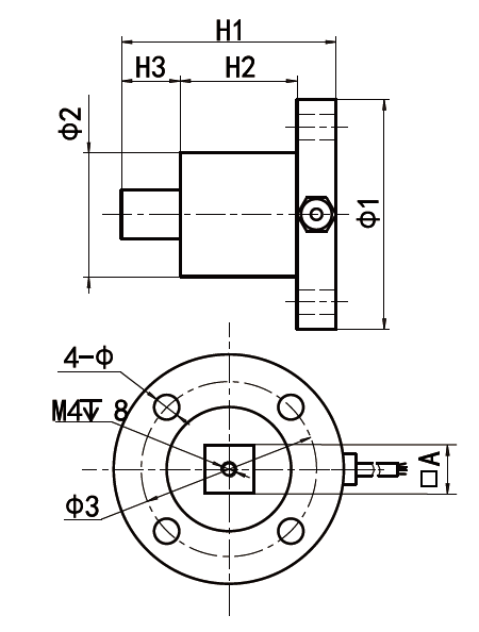

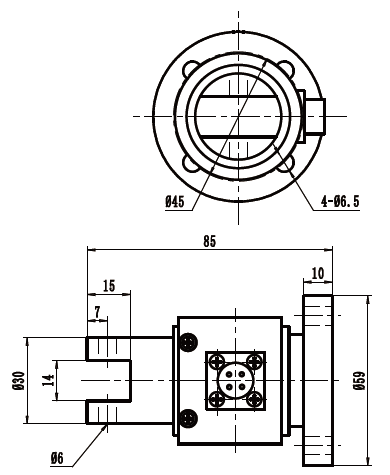

External Dimension外形尺寸
| Capacity(N.m) | A | H1 | H2 | H3 | Ø1 | Ø2 | Ø3 | Ø |
| 2-200 | 12.5 | 55 | 30 | 15 | 59 | 32 | 45 | 6.5 |
| 300-1500 | 25.4 | 75 | 40 | 24 | 68 | 40 | 55 | 8.5 |
| 2000-3000 | 25.4 | 85 | 44 | 24 | 98 | 56 | 80 | 13 |
Parameters Table參數表
| Capacity量程 | 0-3000N.m | Material材質 | Alloy steel合金鋼 |
| Rated Output輸出靈敏度 | 1.0-2.0mV/V | Impedance阻抗 | 350/700Ω |
| Zero Balance零點輸出 | ±2%F.S. | Insulation絕緣電阻 | ≧5000MΩ/100VDC |
| Non-Linearity非線性 | 0.3%F.S. | Voltage電壓 | 5-15v |
| Hysteresis滯後 | 0.1%F.S. | Operating Temp Range工作溫度範圍 | -20-80℃ |
| Repeatability重複性 | 0.1%F.S. | Safe Overload安全過載 | 120% |
| Creep(30min)蠕變(30分鐘) | 0.1%F.S. | Maximum overload極限過載 | 150% |
| Temp Effect on Output溫度靈敏度漂移 | 0.05%F.S./10℃ | Cable specifications電纜線規格 | Ø3x3m |
| Temp Effect on Zero零點溫度漂移 | 0.05%F.S./10℃ | Cable ultimate pull電纜極限拉力 | 10kg |
| Response frequency響應頻率 | 10kHz | TEDS | Can choose可選 |
TTM-JN104
External Dimension外形尺寸
| Capacity(N.m) | 1 2 3 5 6 10 20 30 50 100 150 |
Parameters Table參數表
| Capacity量程 | 0-150N.m | Material材質 | Alloy steel合金鋼 Aluminum Alloy鋁合金 |
| Rated Output輸出靈敏度 | 2.0mV/V | Impedance阻抗 | 350/700Ω |
| Zero Balance零點輸出 | ±2%F.S. | Insulation絕緣電阻 | ≧5000MΩ/100VDC |
| Non-Linearity非線性 | 0.05%F.S. | Voltage電壓 | 5-15v |
| Hysteresis滯後 | 0.05%F.S. | Operating Temp Range工作溫度範圍 | -20-80℃ |
| Repeatability重複性 | 0.05%F.S. | Safe Overload安全過載 | 150% |
| Creep(30min)蠕變(30分鐘) | 0.05%F.S. | Maximum overload極限過載 | 200% |
| Temp Effect on Output溫度靈敏度漂移 | 0.05%F.S./10℃ | Cable specifications電纜線規格 | Ø3x2m |
| Temp Effect on Zero零點溫度漂移 | 0.05%F.S./10℃ | Cable ultimate pull電纜極限拉力 | 10kg |
| Response frequency響應頻率 | 10kHz | TEDS | Can choose可選 |

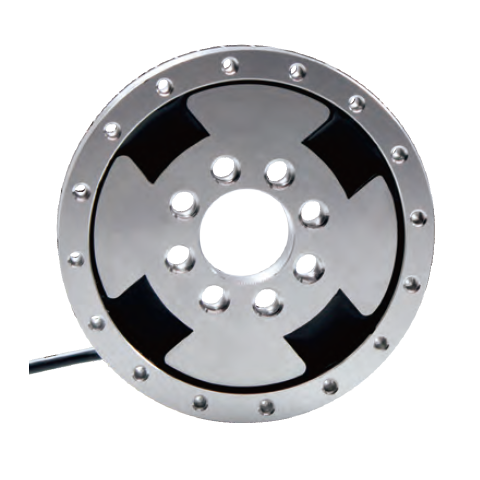

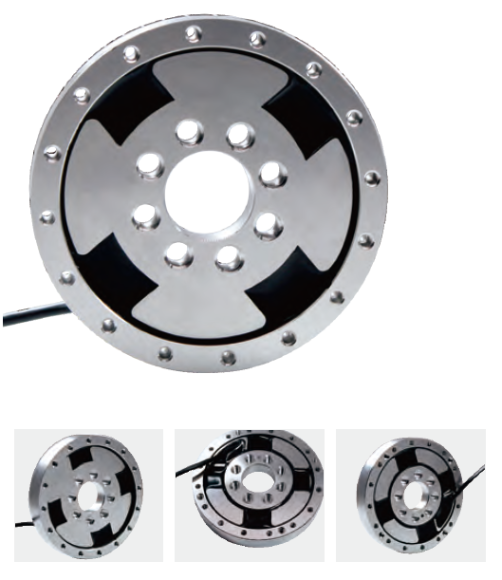

TTM-JN105
Application應用範圍
Mechanical arm joint torque measurement, force detection, force value analysis tester and other torque testing instruments, as well as automation equipment and testing Peld.
機械手臂關節扭力測量、受力檢測、力值分析測試儀等扭力測試儀器，以及自動化設備與測試儀器。
機械手臂關節扭力測量、受力檢測、力值分析測試儀等扭力測試儀器，以及自動化設備與測試儀器。

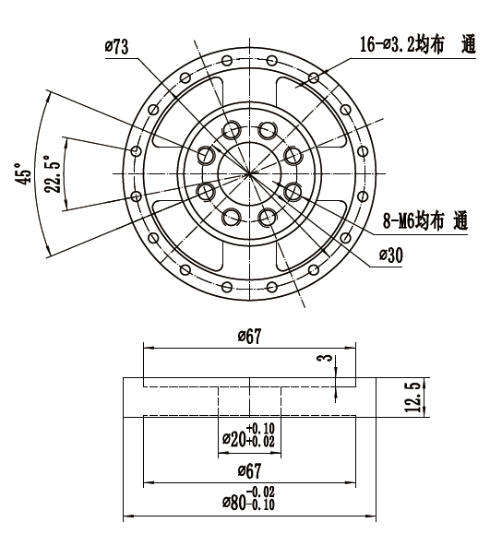

External Dimension外形尺寸
Capacity量測
| Capacity(N.m) | 20 30 50 100 200 |
Parameters Table參數表
| Capacity量程 | 0-200N.m | Material材質 | Alloy steel合金鋼 Aluminum Alloy鋁合金 |
| Rated Output輸出靈敏度 | 2.0mV/V | Impedance阻抗 | 350Ω |
| Zero Balance零點輸出 | ±2%F.S. | Insulation絕緣電阻 | ≧5000MΩ/100VDC |
| Non-Linearity非線性 | 0.2%F.S. | Voltage電壓 | 5-15v |
| Hysteresis滯後 | 0.1%F.S. | Operating Temp Range工作溫度範圍 | -20-80℃ |
| Repeatability重複性 | 0.1%F.S. | Safe Overload安全過載 | 150% |
| Creep(30min)蠕變(30分鐘) | 0.1%F.S. | Maximum overload極限過載 | 200% |
| Temp Effect on Output溫度靈敏度漂移 | 0.1%F.S./10℃ | Cable specifications電纜線規格 | Ø3x2m |
| Temp Effect on Zero零點溫度漂移 | 0.1%F.S./10℃ | Cable ultimate pull電纜極限拉力 | 10kg |
| Response frequency響應頻率 | 10kHz | TEDS | Can choose可選 |

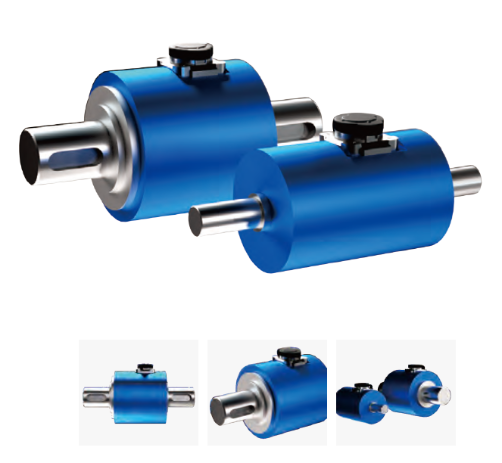

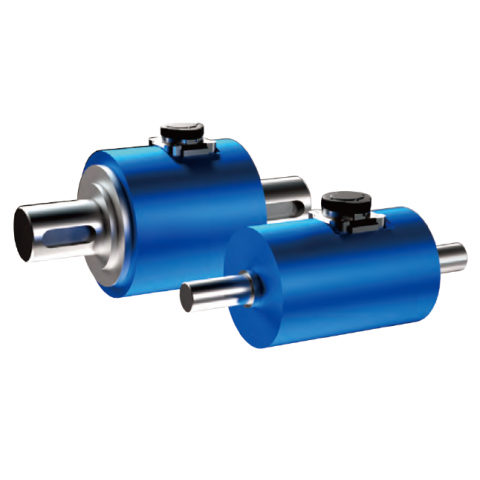

TTM-JN106
Application應用範圍
Universal material testing machine, hopper scale, hook scale, packaging scale, belt scale, plug-in force tester and other tension and pressure testing instruments as well as automation equipment and testing Peld.
萬用材料試驗機、料斗秤、吊鉤秤、包裝秤、皮帶秤、插拔力測試儀等拉力、壓力測試儀器、自動化設備、檢測設備。
萬用材料試驗機、料斗秤、吊鉤秤、包裝秤、皮帶秤、插拔力測試儀等拉力、壓力測試儀器、自動化設備、檢測設備。

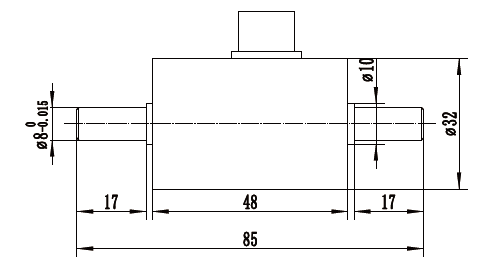

| Capacity(N.m) | 0.1-10 |

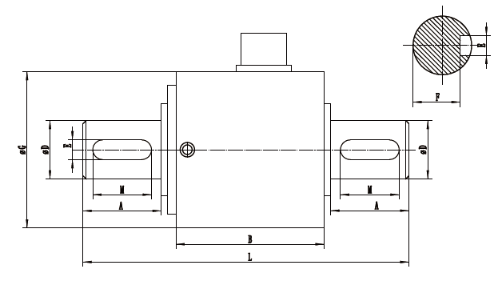

| Capacity(N.m) | ØD | L | A | B | M | E | F | ØG |
| 1-100 | 18 | 100 | 24 | 45.5 | 18 | 6 | 14.5 | 48 |
| 200-300 | 30 | 105 | 25 | 45 | 18 | 8 | 26 | 48 |
| 1000-2000 | 50 | 210 | 73.5 | 54 | 60 | 14 | 44.5 | 68 |
| 3000-5000 | 70 | 238 | 75.5 | 76 | 70 | 20 | 62.5 | 88 |
Parameters Table參數表
| Capacity量程 | 0.1-5000N.m | Material材質 | Alloy steel合金鋼 Stainless steel不鏽鋼 |
| Rated Output輸出靈敏度 | 1.0-2.0mV/V | Impedance阻抗 | 350±5/700±5Ω |
| Zero Balance零點輸出 | ±1%F.S. | Insulation絕緣電阻 | ≧5000MΩ/100VDC |
| Non-Linearity非線性 | 0.1%F.S. | Voltage電壓 | 5-15v |
| Hysteresis滯後 | 0.5%F.S. | Operating Temp Range工作溫度範圍 | -20-80℃ |
| Repeatability重複性 | 0.3%F.S. | Safe Overload安全過載 | 120% |
| Creep(30min)蠕變(30分鐘) | 0.1%F.S. | Maximum overload極限過載 | 150% |
| Temp Effect on Output溫度靈敏度漂移 | 0.1%F.S./10℃ | Cable specifications電纜線規格 | Ø5x3m |
| Temp Effect on Zero零點溫度漂移 | 0.1%F.S./10℃ | Cable ultimate pull電纜極限拉力 | 10kg |
| Response frequency響應頻率 | 10kHz | TEDS | Can choose可選 |

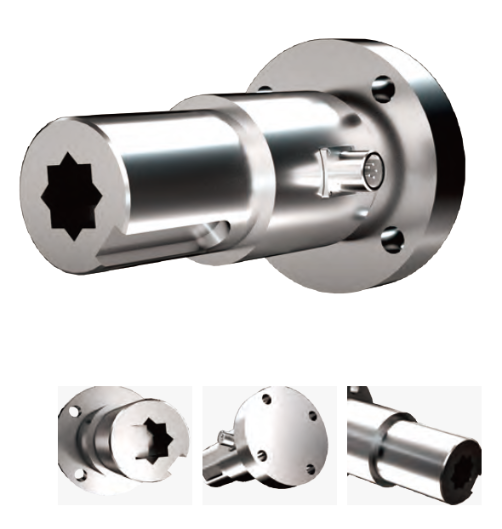

TTM-JN107

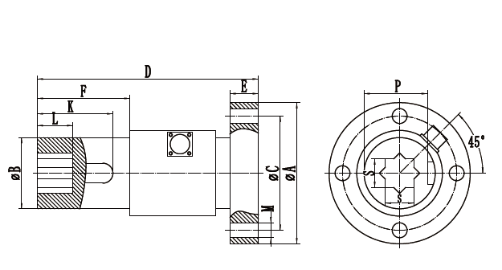

External Dimension外形尺寸
| Capacity(N.m) | ØA | ØB | ØC | D | E | F | K | L | N | S | P | M |
| 0-500 | 98 | 50 | 80 | 90 | 15 | 33 | 33 | 25 | 14 | 20 | 44.5 | 4-Ø10.5 |
| 0-1000 | 99 | 50 | 80 | 155 | 20 | 65 | 53 | 25 | 14 | 20 | 44.5 | 4-Ø10.5 |
| 0-2000 | 125 | 75 | 105 | 150 | 20 | 62 | 60 | 30 | 20 | 25.5 | 67.5 | 8-Ø12.5 |
| 0-5000 | 125 | 75 | 105 | 150 | 20 | 62 | 60 | 90 | 20 | 40.5 | 67.5 | 8-Ø12.5 |
| 0-10000 | 190 | 98 | 160 | 220 | 30 | 120 | 110 | 70 | 2-28 | 55 | 78 | 8-Ø19 |
Parameters Table參數表
| Capacity量程 | 0-100000N.m | Material材質 | Alloy steel合金鋼 Stainless steel不鏽鋼 |
| Rated Output輸出靈敏度 | 1.0-2.0mV/V | Impedance阻抗 | 350±5/700±5 Ω |
| Zero Balance零點輸出 | ±1%F.S. | Insulation絕緣電阻 | ≧5000MΩ/100VDC |
| Non-Linearity非線性 | 0.1%F.S. | Voltage電壓 | 5-15v |
| Hysteresis滯後 | 0.5%F.S. | Operating Temp Range工作溫度範圍 | -20-80℃ |
| Repeatability重複性 | 0.3%F.S. | Safe Overload安全過載 | 120% |
| Creep(30min)蠕變(30分鐘) | 0.1%F.S. | Maximum overload極限過載 | 150% |
| Temp Effect on Output溫度靈敏度漂移 | 0.1%F.S./10℃ | Cable specifications電纜線規格 | Ø5x3m |
| Temp Effect on Zero零點溫度漂移 | 0.1%F.S./10℃ | Cable ultimate pull電纜極限拉力 | 10kg |
| Response frequency響應頻率 | 10kHz | TEDS | Can choose可選 |
TTM-JN108
External Dimension外形尺寸
| Capacity(N.m) |
| 3000N.m |
Parameters Table參數表
| Capacity量程 | 0-3000N.m |
| Speed Capaciy轉速信號 | 1.0-2.0mV/V |
| Zero Balance零點輸出 | ±2%F.S. |
| Non-Linearity非線性 | 0.5%F.S. |
| Hysteresis滯後 | 0.5%F.S. |
| Repeatability重複性 | 0.2%F.S. |
| Creep(30min)蠕變(30分鐘) | 0.05%F.S. |
| Temp Effect on Output溫度靈敏度漂移 | 0.1%F.S./10℃ |
| Temp Effect on Zero零點溫度漂移 | 0.1%F.S./10℃ |
| Response Time | 1ms(50%反應) |
| Response frequency響應頻率 | 1kHz |
| Display Range顯示範圍 Natural frequency of rotor vibration |
-99999-99999 |
| Material材質 | Alloy steel合金鋼 Stainless steel不鏽鋼 |
| Stability per yer年穩定性 | 0.3% / year年 |
| Load resistance負載電阻 | >2kΩ |
| Work Environment工作環境 | -10-50℃ D:E-85%RH |
| Safe Overload安全過載 | 120% |
Product Reviews 產品綜述

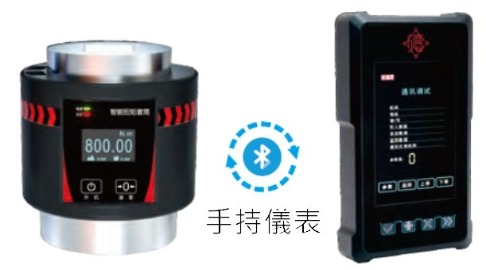

1. It can measure both static torque and rotating torque / 既可以測量靜止扭矩,也可以測量旋轉轉矩
2. Torque accuracy can reach +0.5%FS / 扭矩精度可達到土0.5%FS
3. The torque range and the specipcations of the sleeve can be customizedaccording to requirements / 扭矩量程和套筒的規格可根據需求定制
4. There is a display screen on the sleeve, which can display the tighteningtorque in real time / 套筒上裝有顯示幕,可即時顯示擰緊的扭矩
5. With real-time torque and peak torque selection switching display / 具有即時扭矩和峰值扭矩選擇切換顯示
6. With wireless torque data real-time transmission function, wireless datatransmission distance is less than 10 meters / 具有無線扭矩資料即時傳輸功能,無線資料傳輸距離<10公尺
7. The matching computer test software can display real-time torque, andautomatically save information such as the number of bolts and torgue curve asan excel format ple for easy traceabilty and query / 相配套的電腦測試軟體可顯示即時扭矩,並將螺栓緊固的數量、扭矩曲線等資訊自動保存為excel格式檔,以便於追溯和查詢
8. Working time is about 10 hours after charging / 充完電後工作時間約10小時
9. It can be applied to hydraulic torque wrenches, electric torque wrenches, andpneumatic torque wrenches to realize torque data communication transmissionand automatic control / 可應用在液壓扭矩扳手、電動扭矩扳手、氣動扭矩扳手上,實現扭矩資料通訊傳輸和自動控制
