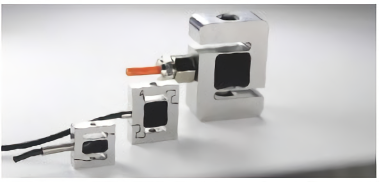

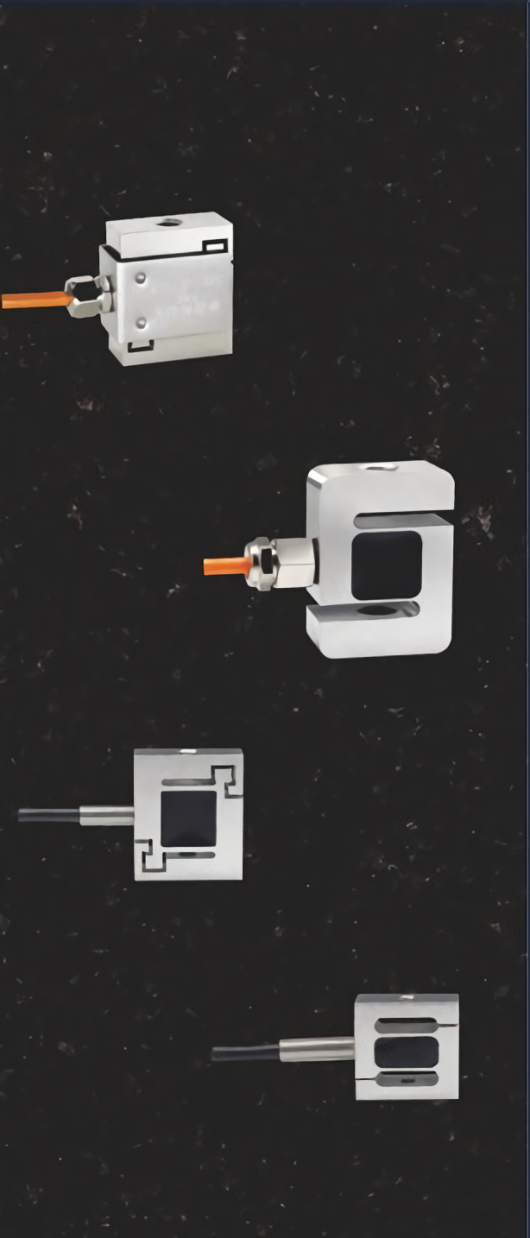

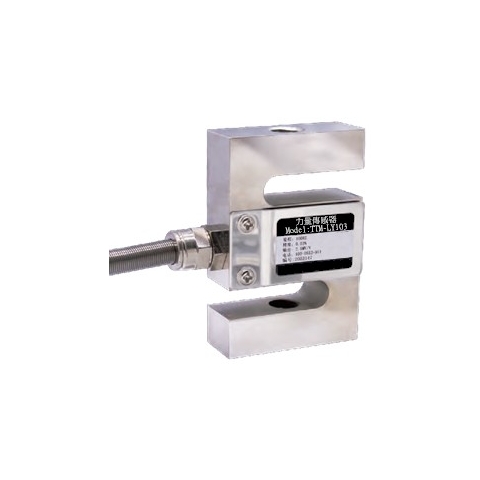

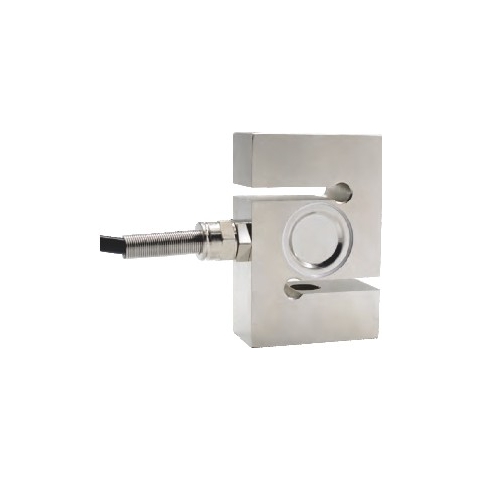

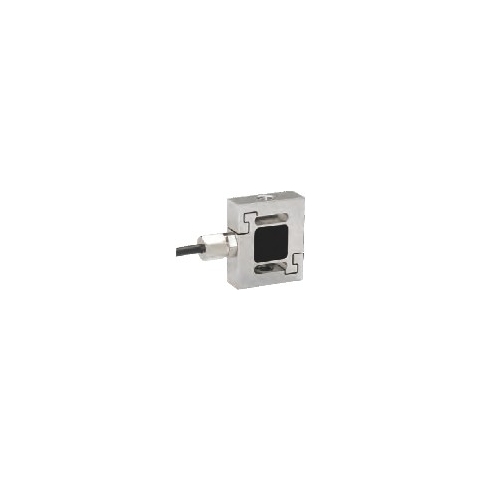

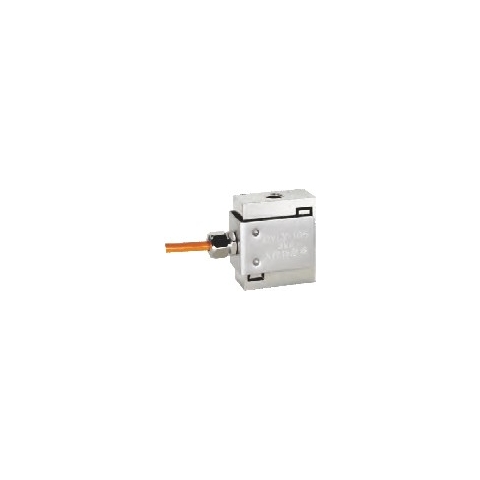

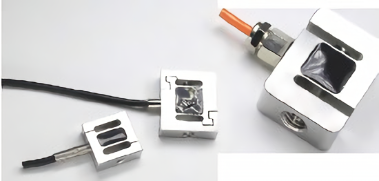

S-type tension pressure sensor
S型拉壓力傳感器
Application應用範圍
1.3C digital detection
2.Booster device
3.Manipulator
1.3C數位檢測
2.助力裝置
3.機械手臂
Characteristic特點
1. The sensitivity of 5-beam is high
2. Test the tension and compression bidirectional force
3. Dynamic response frequency < 100Hz is mostly used for static test
1.S型梁體靈敏度高
2.檢測拉壓雙向力
3.動態響應頻率<100Hz多用於靜態測試
Product Reviews產品介紹
Characteristic：
It has the advantages of bi-directional tension and compression, compact structure, high comprehensive precision, good long-term stability and nickel plating on the surface of high-quality alloy steel.
Application fields：
Universal material testing machine, hopper scale, hook scale, packaging scale, belt scale, plug-in force tester and other tension and pressure testing instruments as well as automation equipment and testing Pled.
特性：
拉壓雙向受力、結構緊湊、綜合精度高、長期穩定性好、優質合金鋼表面鍍鎳。
應用領域：
萬能材料試驗機、料斗秤、吊鉤秤、包裝秤、皮帶秤、插拔力測試儀等拉壓力測試儀器以及自動化設備。

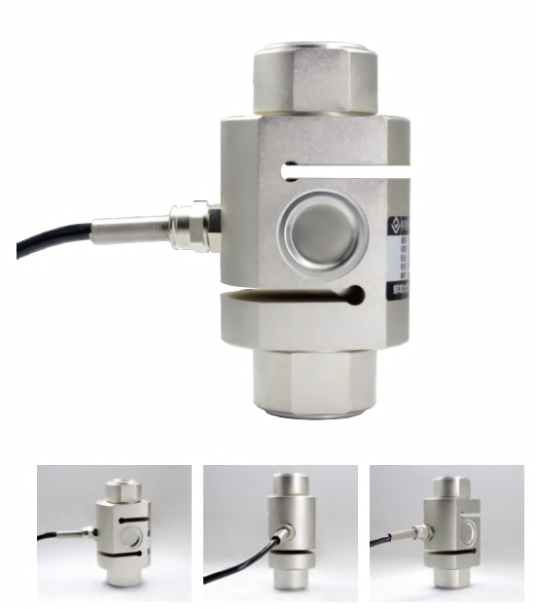

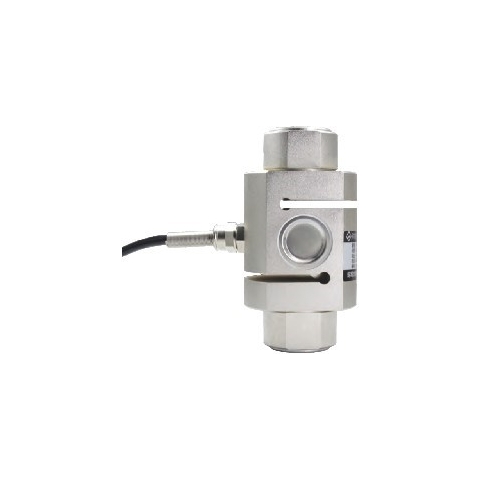

TTM-LY101

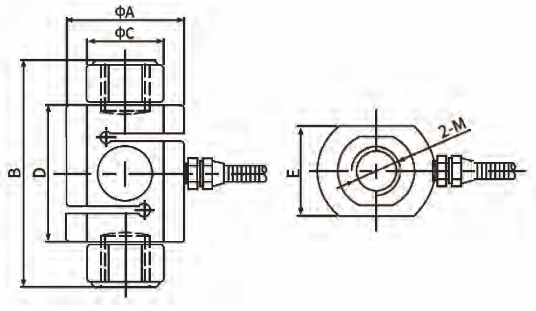

External Dimension外形尺寸
| Capacity | ØA | B | ØC | D | E | M |
| 0-1000kg | 44 | 88 | 28 | 56 | 26 | M16x1.5 |
| 1.5T | 58 | 112 | 38 | 68 | 44 | M24x3 |
| 10T | 84 | 160 | 60 | 104 | 58 | M36x4 |
| 20T | 88 | 156 | 68.5 | 108 | 76 | M36x4 |
Parameters Table參數表
| Capacity量程 | 0-20T | Material材質 | Alloy steel合金鋼 |
| Rated Output輸出靈敏度 | 2.0mV/V | Impedance阻抗 | 350Ω |
| Zero Balance零點輸出 | ±1%F.S. | Insulation絕緣電阻 | ≧5000MΩ/100VDC |
| Non-Linearity非線性 | 0.05%F.S. | Voltage電壓 | 5-15v |
| Hysteresis滯後 | 0.05%F.S. | Operating Temp Range工作溫度範圍 | -20-80℃ |
| Repeatability重複性 | 0.03%F.S. | Safe Overload安全過載 | 150% |
| Creep(30min)蠕變(30分鐘) | 0.05%F.S. | Maximum overload極限過載 | 200% |
| Temp Effect on Output溫度靈敏度漂移 | 0.05%F.S./10℃ | Cable specifications電纜線規格 | Ø5＜2T 3m、＞2T 5m |
| Temp Effect on Zero零點溫度漂移 | 0.05%F.S./10℃ | Cable ultimate pull電纜極限拉力 | 10kg |
| Response frequency響應頻率 | 10kHz | TEDS | Can choose可選 |

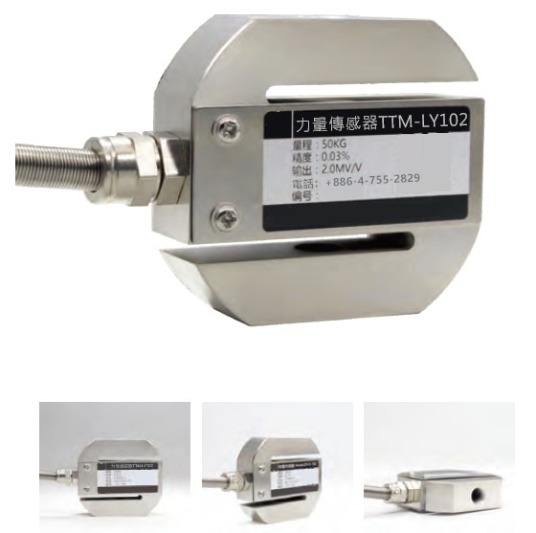

TTM-LY102

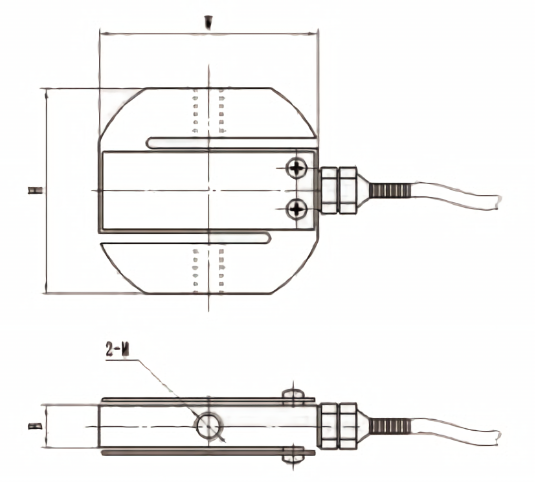

External Dimension外形尺寸
| Capacity | M | W | H | B |
| 0-30kg | M8x1.25 | 62 | 58 | 12 |
| 50-200kg | M12x1.75 | 70 | 64 | 20 |
| 300-500kg | M12x1.75 | 70 | 64 | 20 |
| 1T | M16x2 | 70 | 64 | 25 |
| 2-7T | M20x2.5 | 84 | 92 | 32 |
Parameters Table參數表
| Capacity量程 | 0.2-1T 2-7T | Material材質 | Alloy steel合金鋼 |
| Rated Output輸出靈敏度 | 2.0±10%mV/V | Impedance阻抗 | 350Ω |
| Zero Balance零點輸出 | ±1%F.S. | Insulation絕緣電阻 | ≧5000MΩ/100VDC |
| Non-Linearity非線性 | 0.03%F.S. | Voltage電壓 | 5-15v |
| Hysteresis滯後 | 0.03%F.S. | Operating Temp Range工作溫度範圍 | -20-80℃ |
| Repeatability重複性 | 0.03%F.S. | Safe Overload安全過載 | 150% |
| Creep(30min)蠕變(30分鐘) | 0.03%F.S. | Maximum overload極限過載 | 200% |
| Temp Effect on Output溫度靈敏度漂移 | 0.03%F.S./10℃ | Cable specifications電纜線規格 | Ø5：0.2-1T/2m/2-7T/5m |
| Temp Effect on Zero零點溫度漂移 | 0.05%F.S./10℃ | Cable ultimate pull電纜極限拉力 | 10kg |
| Response frequency響應頻率 | 10kHz | TEDS | Can choose可選 |

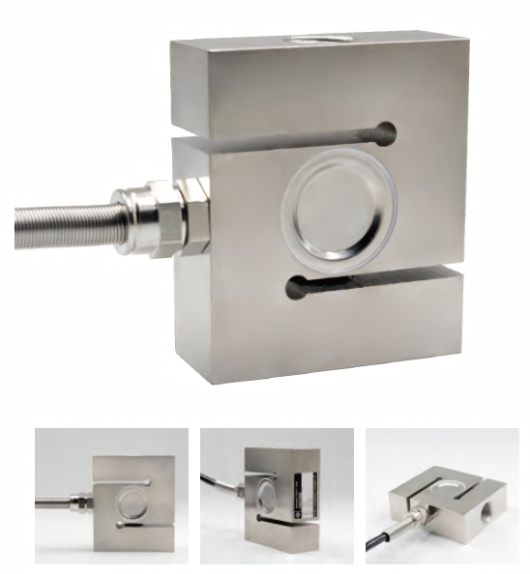

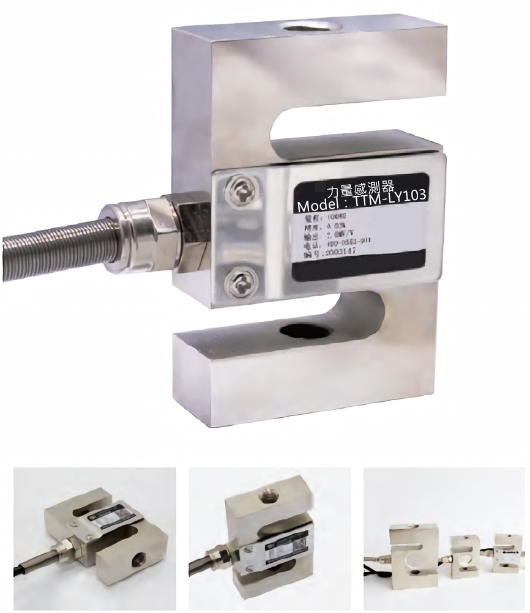

TTM-LY103

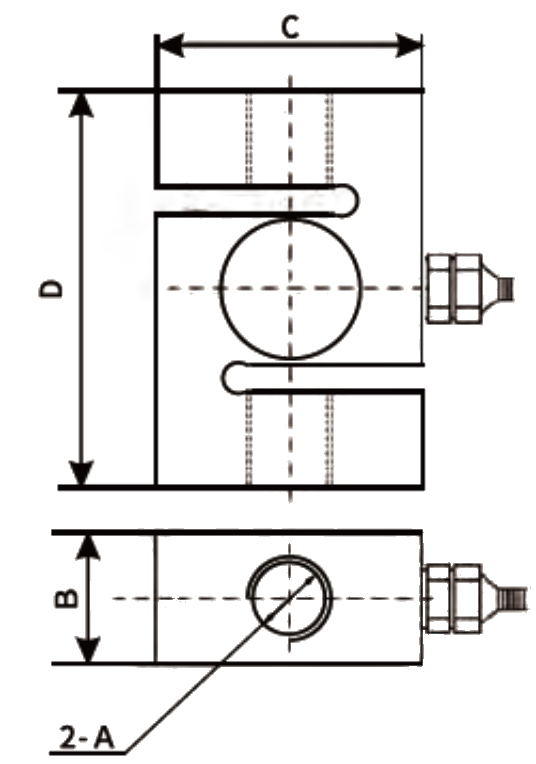

External Dimension外形尺寸
| Capacity | A | B | C | D |
| 2-50kg | M8x1.25 | 12.7 | 50.8 | 63.5 |
| 100-300kg | M12x1.75 | 19 | 50.8 | 76.2 |
| 500kg-1.5T | M12x1.75 | 25.4 | 50.8 | 76.2 |
| 2.5T | M18x1.5 | 25.4 | 76.2 | 108 |
Parameters Table參數表
| Capacity量程 | 0.2-1T 2-5T | Material材質 | Alloy steel合金鋼 |
| Rated Output輸出靈敏度 | 2.0±10%mV/V | Impedance阻抗 | 350Ω |
| Zero Balance零點輸出 | ±1%F.S. | Insulation絕緣電阻 | ≧5000MΩ/100VDC |
| Non-Linearity非線性 | 0.03%F.S. | Voltage電壓 | 5-15v |
| Hysteresis滯後 | 0.03%F.S. | Operating Temp Range工作溫度範圍 | -20-80℃ |
| Repeatability重複性 | 0.03%F.S. | Safe Overload安全過載 | 150% |
| Creep(30min)蠕變(30分鐘) | 0.03%F.S. | Maximum overload極限過載 | 200% |
| Temp Effect on Output溫度靈敏度漂移 | 0.03%F.S./10℃ | Cable specifications電纜線規格 | Ø5:0.2-1T/2m、2-5T/5m |
| Temp Effect on Zero零點溫度漂移 | 0.05%F.S./10℃ | Cable ultimate pull電纜極限拉力 | 10kg |
| Response frequency響應頻率 | 10kHz | TEDS | Can choose可選 |

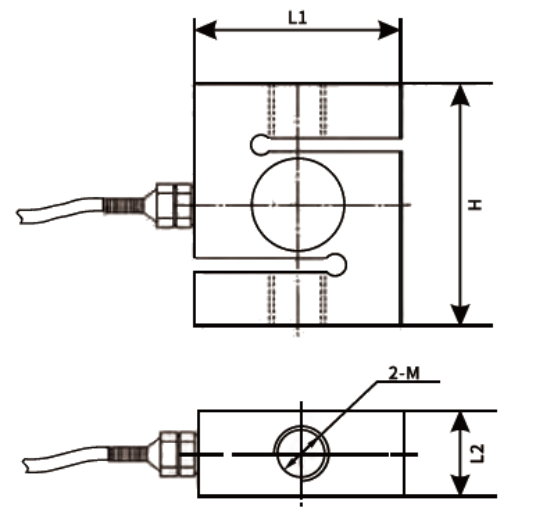

TTM-LY104
External Dimension外形尺寸
| Capacity | 2-M | H | L2 | L1 |
| 200-500kg | M12x1.75 | 70 | 25 | 60 |
| 700kg-1T | M16x2 | 70 | 25 | 60 |
| 2T | M16x2 | 70 | 25 | 64 |
| 3T-5T | M18x1.5 | 94 | 35 | 86 |
| 10T | M30x2 | 137 | 60 | 110 |
Parameters Table參數表
| Capacity量程 | 0-2T 2-10T | Material材質 | Alloy steel合金鋼 |
| Rated Output輸出靈敏度 | 2.0mV/V | Impedance阻抗 | 350Ω |
| Zero Balance零點輸出 | ±1%F.S. | Insulation絕緣電阻 | ≧5000MΩ/100VDC |
| Non-Linearity非線性 | 0.05%F.S. | Voltage電壓 | 5-15v |
| Hysteresis滯後 | 0.05%F.S. | Operating Temp Range工作溫度範圍 | -20-80℃ |
| Repeatability重複性 | 0.03%F.S. | Safe Overload安全過載 | 150% |
| Creep(30min)蠕變(30分鐘) | 0.05%F.S. | Maximum overload極限過載 | 200% |
| Temp Effect on Output溫度靈敏度漂移 | 0.05%F.S./10℃ | Cable specifications電纜線規格 | Ø5：0-2T/2m/2-10T/5m |
| Temp Effect on Zero零點溫度漂移 | 0.05%F.S./10℃ | Cable ultimate pull電纜極限拉力 | 10kg |
| Response frequency響應頻率 | 10kHz | TEDS | Can choose可選 |

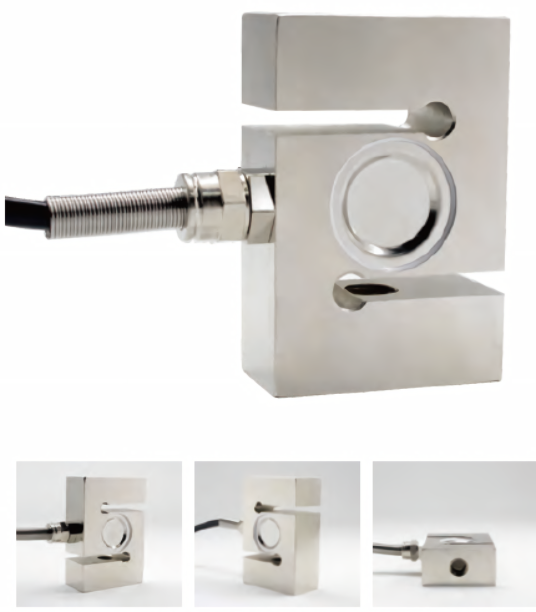

TTM-LY105

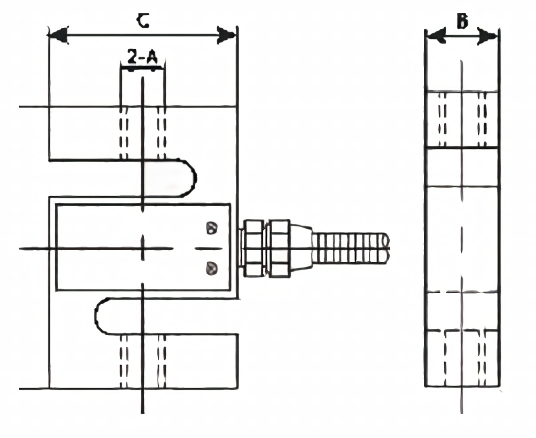

External Dimension外形尺寸
| Capacity | A | B | C | D |
| 100-200kg | M12x1.75 | 19 | 50.8 | 76.2 |
| 300-500kg | M12x1.75 | 25.4 | 50.8 | 76.2 |
| 1-1.5T | M16x2 | 25.4 | 50.8 | 76.2 |
Parameters Table參數表
| Capacity量程 | 0-1.5T | Material材質 | Alloy steel合金鋼 |
| Rated Output輸出靈敏度 | 2.0mV/V | Impedance阻抗 | 350Ω |
| Zero Balance零點輸出 | ±1%F.S. | Insulation絕緣電阻 | ≧5000MΩ/100VDC |
| Non-Linearity非線性 | 0.03%F.S. | Voltage電壓 | 5-15v |
| Hysteresis滯後 | 0.03%F.S. | Operating Temp Range工作溫度範圍 | -20-80℃ |
| Repeatability重複性 | 0.03%F.S. | Safe Overload安全過載 | 150% |
| Creep(30min)蠕變(30分鐘) | 0.03%F.S. | Maximum overload極限過載 | 200% |
| Temp Effect on Output溫度靈敏度漂移 | 0.03%F.S./10℃ | Cable specifications電纜線規格 | Ø52m |
| Temp Effect on Zero零點溫度漂移 | 0.05%F.S./10℃ | Cable ultimate pull電纜極限拉力 | 10kg |
| Response frequency響應頻率 | 10kHz | TEDS | Can choose可選 |
TTM-LY106

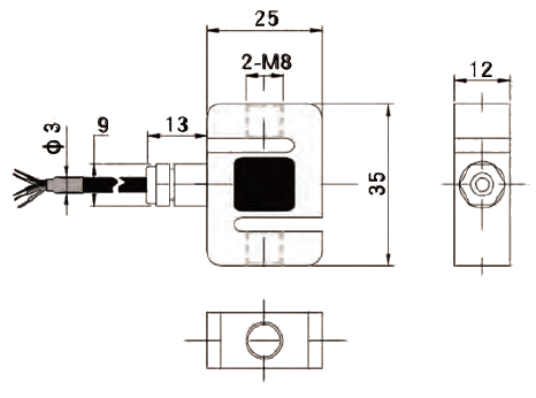

External Dimension外形尺寸
| Capacity (kg) |
| 1 2 3 5 10 20 30 50 100 |
Parameters Table參數表
| Capacity量程 | 0-50kg | Material材質 | Alloy steel合金鋼 |
| Rated Output輸出靈敏度 | 1.0-2.0mV/V | Impedance阻抗 | 350Ω |
| Zero Balance零點輸出 | ±1%F.S. | Insulation絕緣電阻 | ≧5000MΩ/100VDC |
| Non-Linearity非線性 | 0.05%F.S. | Voltage電壓 | 5-15v |
| Hysteresis滯後 | 0.03%F.S. | Operating Temp Range工作溫度範圍 | -20-80℃ |
| Repeatability重複性 | 0.03%F.S. | Safe Overload安全過載 | 150% |
| Creep(30min)蠕變(30分鐘) | 0.03%F.S. | Maximum overload極限過載 | 200% |
| Temp Effect on Output溫度靈敏度漂移 | 0.03%F.S./10℃ | Cable specifications電纜線規格 | Ø3X2m |
| Temp Effect on Zero零點溫度漂移 | 0.03%F.S./10℃ | Cable ultimate pull電纜極限拉力 | 10kg |
| Response frequency響應頻率 | 10kHz | TEDS | Can choose可選 |

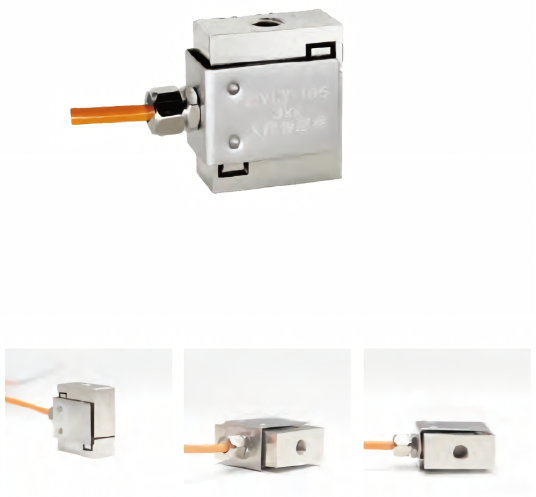

TTM-LY107

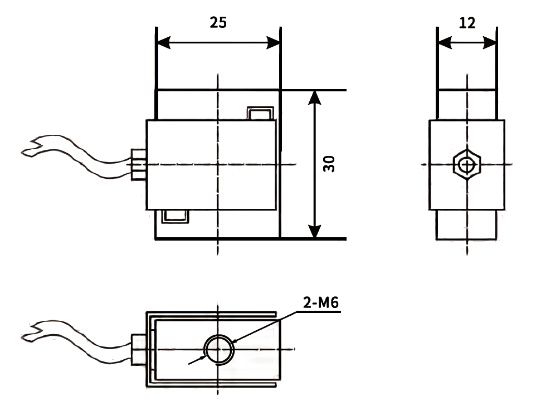

External Dimension外形尺寸
| Capacity (kg) |
| 5 10 20 30 50 100 200 |
Parameters Table參數表
| Capacity量程 | 0-200kg | Material材質 | Stainless steel不鏽鋼 |
| Rated Output輸出靈敏度 | 1.0-2.0mV/V | Impedance阻抗 | 350Ω |
| Zero Balance零點輸出 | ±2%F.S. | Insulation絕緣電阻 | ≧5000MΩ/100VDC |
| Non-Linearity非線性 | 0.05%F.S. | Voltage電壓 | 5-10v |
| Hysteresis滯後 | 0.03%F.S. | Operating Temp Range工作溫度範圍 | -20-80℃ |
| Repeatability重複性 | 0.03%F.S. | Safe Overload安全過載 | 150% |
| Creep(30min)蠕變(30分鐘) | 0.03%F.S. | Maximum overload極限過載 | 200% |
| Temp Effect on Output溫度靈敏度漂移 | 0.03%F.S./10℃ | Cable specifications電纜線規格 | Ø3x2m |
| Temp Effect on Zero零點溫度漂移 | 0.05%F.S./10℃ | Cable ultimate pulluql電纜極限拉力 | 10kg |
| Response frequency響應頻率 | 10kHz | TEDS | Can choose可選 |
TTM-LY108

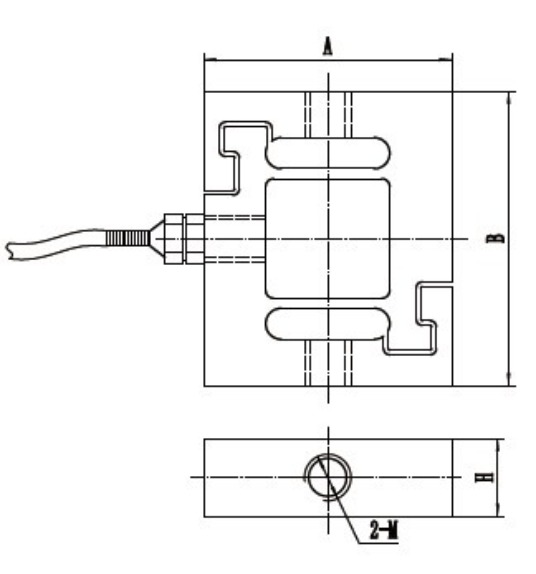

External Dimension外形尺寸
| Capacity (kg) | M | H | A | B |
| 0.5-10 | M3 | 5 | 16 | 19.1 |
| 20-50 | M4 | 6 | 16 | 19.1 |
| 100-200 | M8 | 14 | 26 | 40 |
Parameters Table參數表
| Capacity量程 | 0-200kg | Material材質 | Stainless steel不鏽鋼 |
| Rated Output輸出靈敏度 | 1.0-2.0mV/V | Impedance阻抗 | 350Ω |
| Zero Balance零點輸出 | ±2%F.S. | Insulation絕緣電阻 | ≧5000MΩ/100VDC |
| Non-Linearity非線性 | 0.1%F.S. | Voltage電壓 | 5-10v |
| Hysteresis滯後 | 0.05%F.S. | Operating Temp Range工作溫度範圍 | -20-80℃ |
| Repeatability重複性 | 0.05%F.S. | Safe Overload安全過載 | 150% |
| Creep(30min)蠕變(30分鐘) | 0.05%F.S. | Maximum overload極限過載 | 200% |
| Temp Effect on Output溫度靈敏度漂移 | 0.05%F.S./10℃ | Cable specifications電纜線規格 | ＜100kg：Ø2x1m ; ＞100kg：Ø3x2m |
| Temp Effect on Zero零點溫度漂移 | 0.05%F.S./10℃ | Cable ultimate pulluql電纜極限拉力 | 10kg |
| Response frequency響應頻率 | 10kHz | TEDS | Can choose可選 |

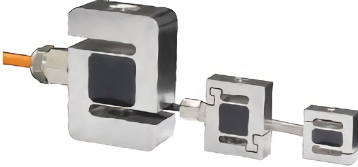

TTM-LY109

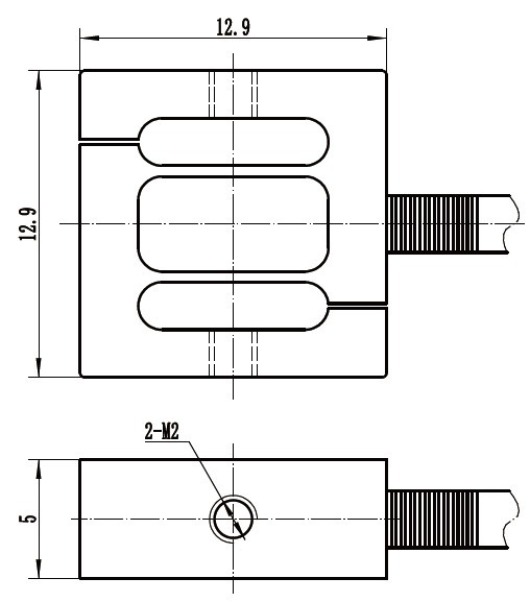

External Dimension外形尺寸
| Capacity (kg) |
| 0.5 1 2 5 10 |
Parameters Table參數表
| Capacity量程 | 0-10kg |
| Rated Output輸出靈敏度 | 1.0-2.0mV/V |
| Zero Balance零點輸出 | ±2%F.S. |
| Non-Linearity非線性 | 0.10%F.S. |
| Hysteresis滯後 | 0.05%F.S. |
| Repeatability重複性 | 0.05%F.S. |
| Creep(30min)蠕變(30分鐘) | 0.05%F.S. |
| Temp Effect on Output溫度靈敏度漂移 | 0.05%F.S./10℃ |
| Temp Effect on Zero零點溫度漂移 | 0.05%F.S./10℃ |
| Response frequency響應頻率 | 10kHz |
| Material材質 | Stainless steel不鏽鋼 |
| Impedance阻抗 | 350Ω |
| Insulation絕緣電阻 | ≧5000MΩ/100VDC |
| Voltage電壓 | 5-10v |
| Operating Temp Range工作溫度範圍 | -20-80℃ |
| Safe Overload安全過載 | 150% |
| Maximum overload極限過載 | 200% |
| Cable specifications電纜線規格 | Ø2x2m |
| Cable ultimate pulluql電纜極限拉力 | 10kg |
| TEDS | Can choose可選 |

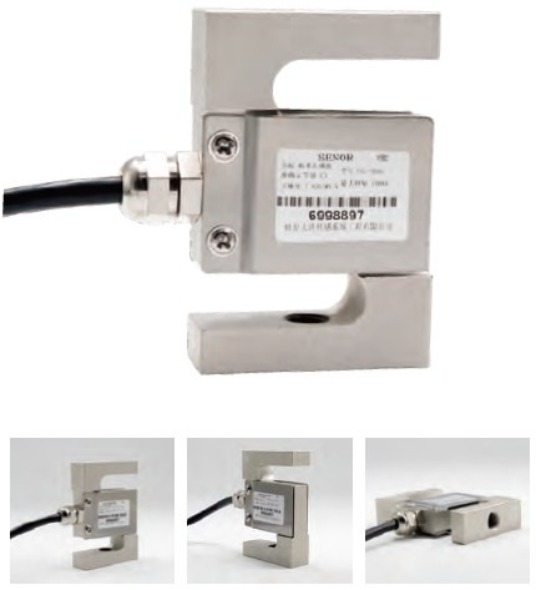

TTM-TSC
Parameters Table參數表
| Capacity量程 | 50kg-5T |
| Rated Output輸出靈敏度 | 2.0-3.0±10%mV/V |
| Zero Balance零點輸出 | ±1%F.S. |
| Non-Linearity非線性 | 0.03%F.S. |
| Hysteresis滯後 | 0.03%F.S. |
| Repeatability重複性 | 0.03%F.S. |
| Creep(30min)蠕變(30分鐘) | 0.03%F.S. |
| Temp Effect on Output溫度靈敏度漂移 | 0.03%F.S./10℃ |
| Temp Effect on Zero零點溫度漂移 | 0.05%F.S./10℃ |
| Response frequency響應頻率 | 10kHz |
| Material材質 | Alloy steel合金鋼 |
| Impedance阻抗 | 350Ω |
| Insulation絕緣電阻 | ≧5000MΩ/100VDC |
| Voltage電壓 | 5-15v |
| Operating Temp Range工作溫度範圍 | -20-80℃ |
| Safe Overload安全過載 | 150% |
| Maximum overload極限過載 | 300% |
| Cable specifications電纜線規格 | Ø5x6m |
| Cable ultimate pulluql電纜極限拉力 | 10kg |
| TEDS | Can choose可選 |

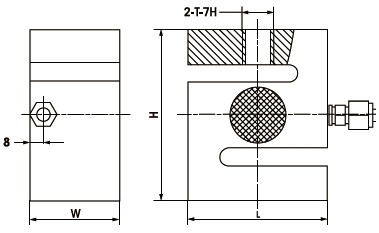

External Dimension外形尺寸
| Capacity(kg) | W | T |
| 50、100、200 | 18.5 | M10x1 |
| 300 | 24.4 | M10x1 |
| 500 | 24.4 | M12x1 |
| 1000 | 36 | M12x1 |
| Capacity (kg) | L | H | W | T |
| 2000 | 70 | 86 | 45 | M16x1.5 |
| 3000 | 80 | 100 | 50 | M18x1.5 |
| 5000 | 92 | 130 | 58 | M20x2 |
