Characteristtic特性

Characteristtic特性

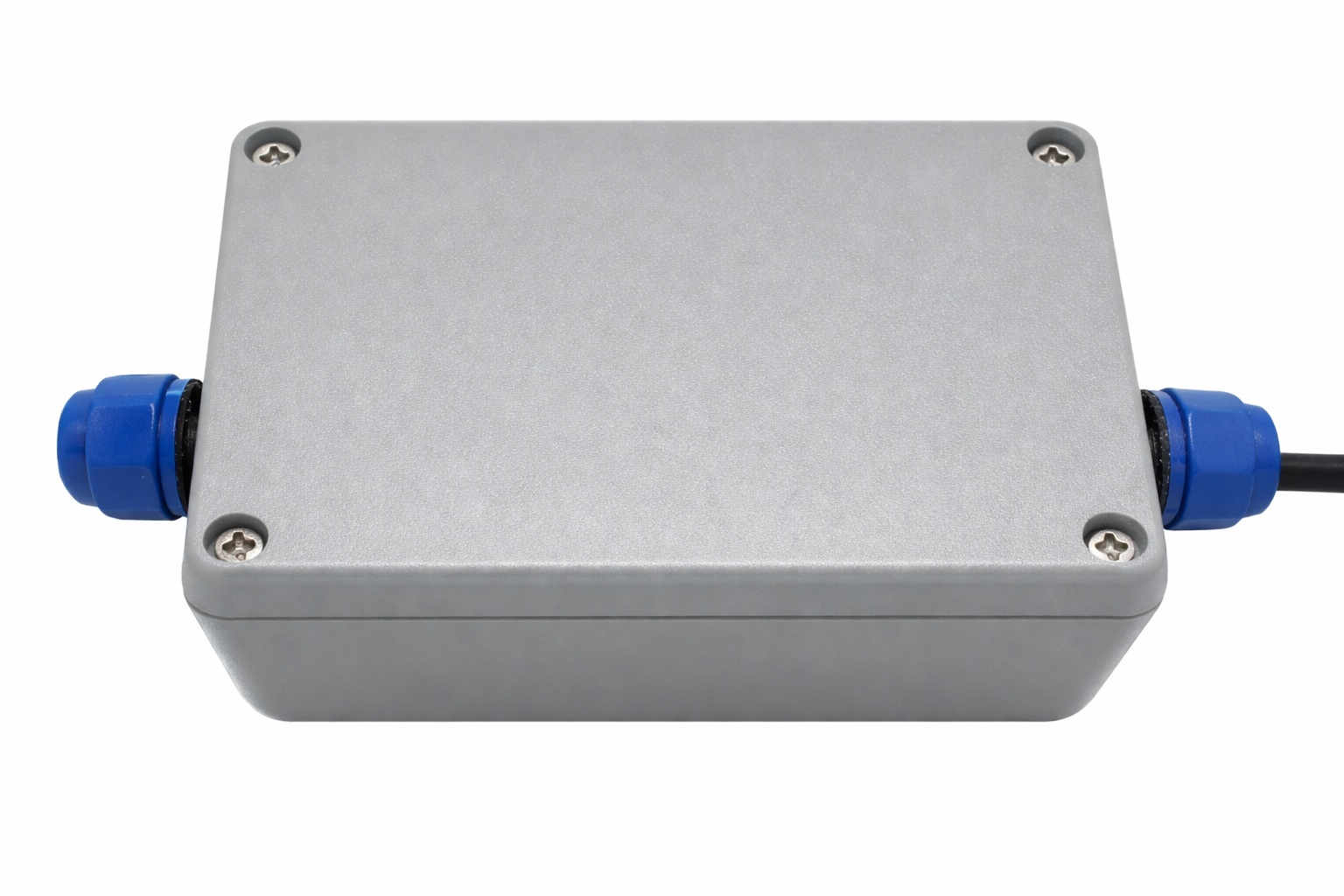

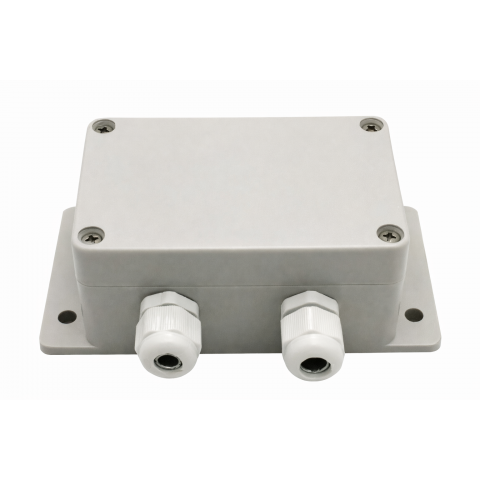

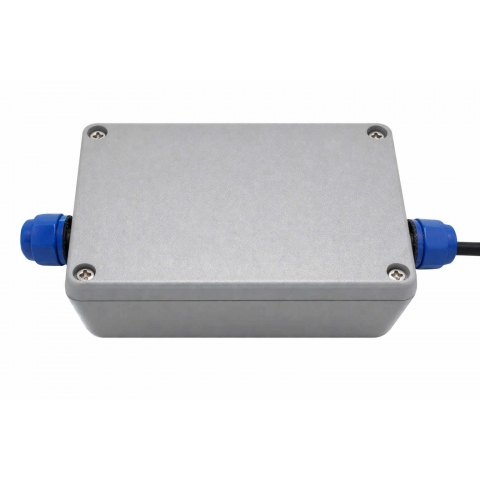

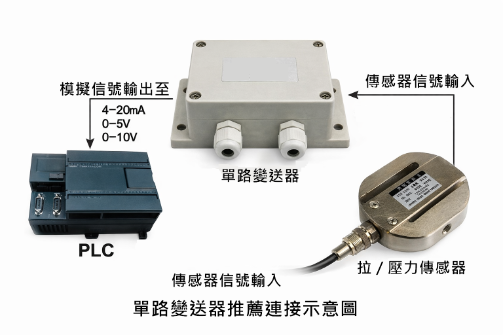

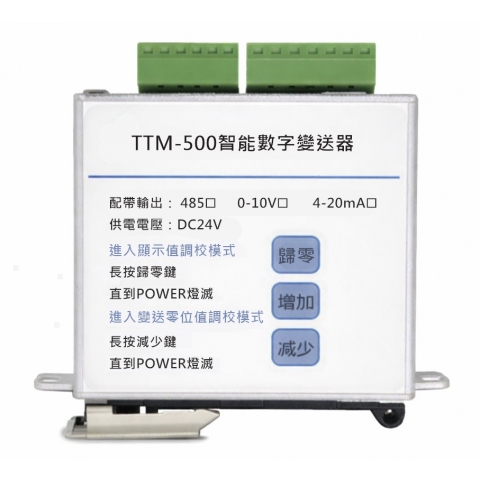

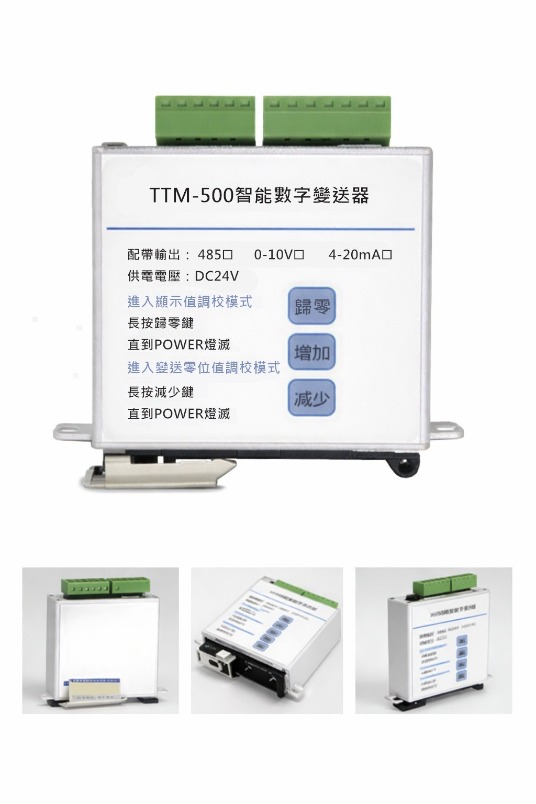

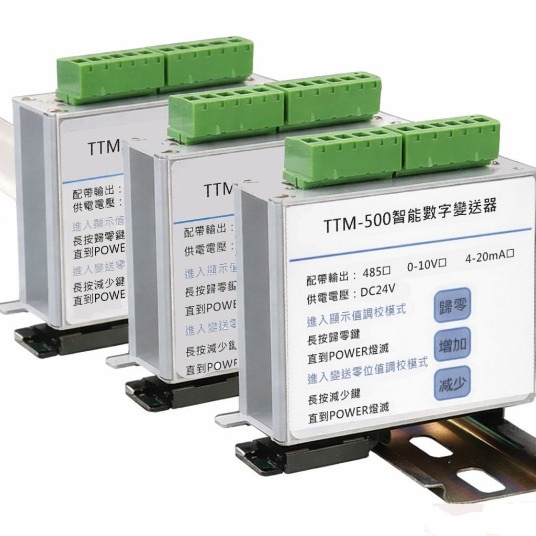

 The external transmitter adopts aluminum alloy shell, which can precisely amplify the micro voltage signal (MV) of the weighing sensor. The circuit is neat, constant current bridge supply, voltage and current conversion, impedance adaptation, linear compensation, temperature compensation, etc. the mechanical quantity is converted into standard current and voltage signal output. 4 ~ 20mA, 0 ~ 10mA, - 5V - 0 - 5V, 1 - 5V, -10 - 0-10V are directly connected with automatic control equipment The transmitter has the function of zero adjustment and gain adjustment.

外部變送器採用鋁合金外殼，可精確放大稱重感測器的微伏特訊號（MV）。電路設計簡潔，採用恆定電流橋供電，進行電壓電流轉換、阻抗匹配、線性補償、溫度補償等，將機械量轉換為標準的電流和電壓訊號輸出。 4~20mA、0~10mA、-5V~0~5V、1~5V、-10V~0~10V 等輸出可直接與自動控制設備連接。變送器具有零點調整和增益調整功能。

Chraacteristic

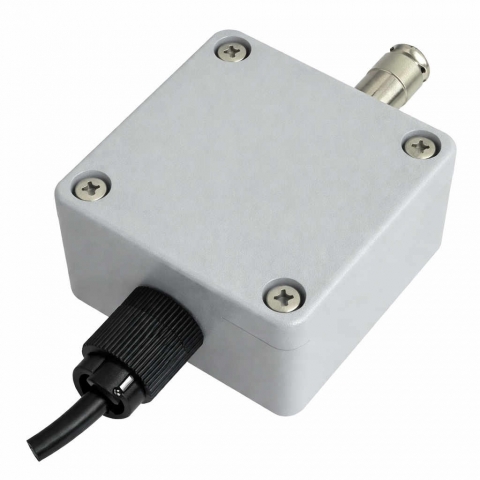

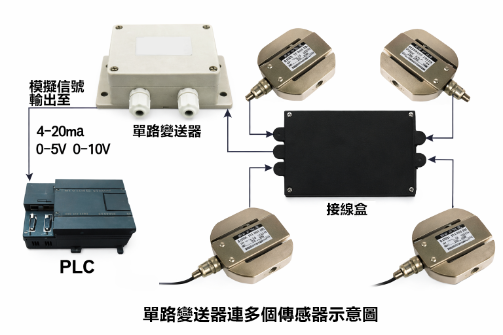

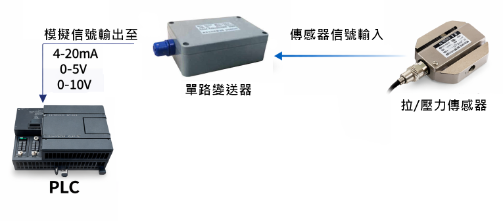

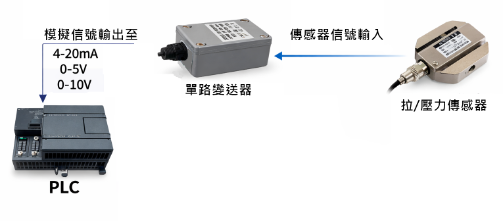

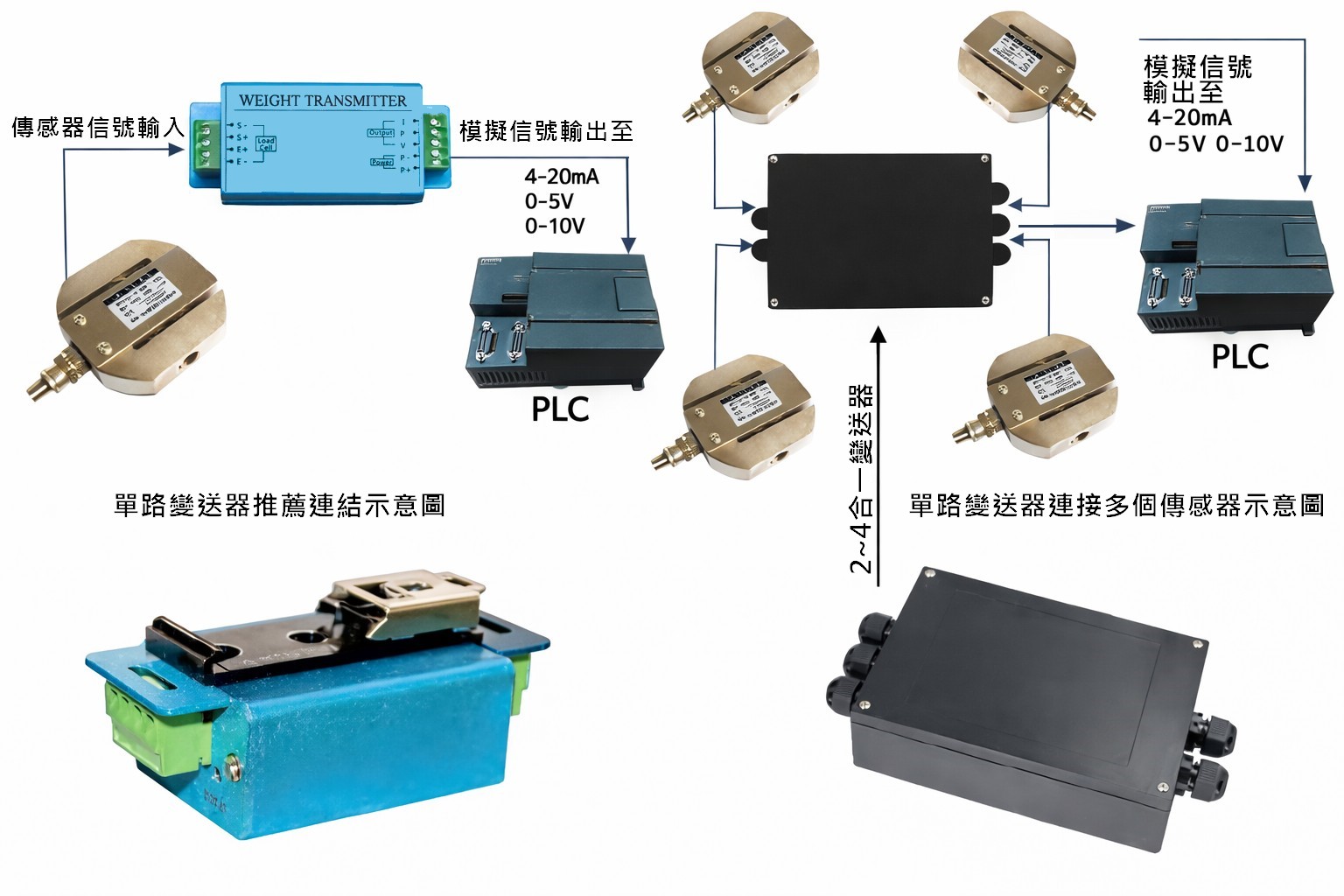

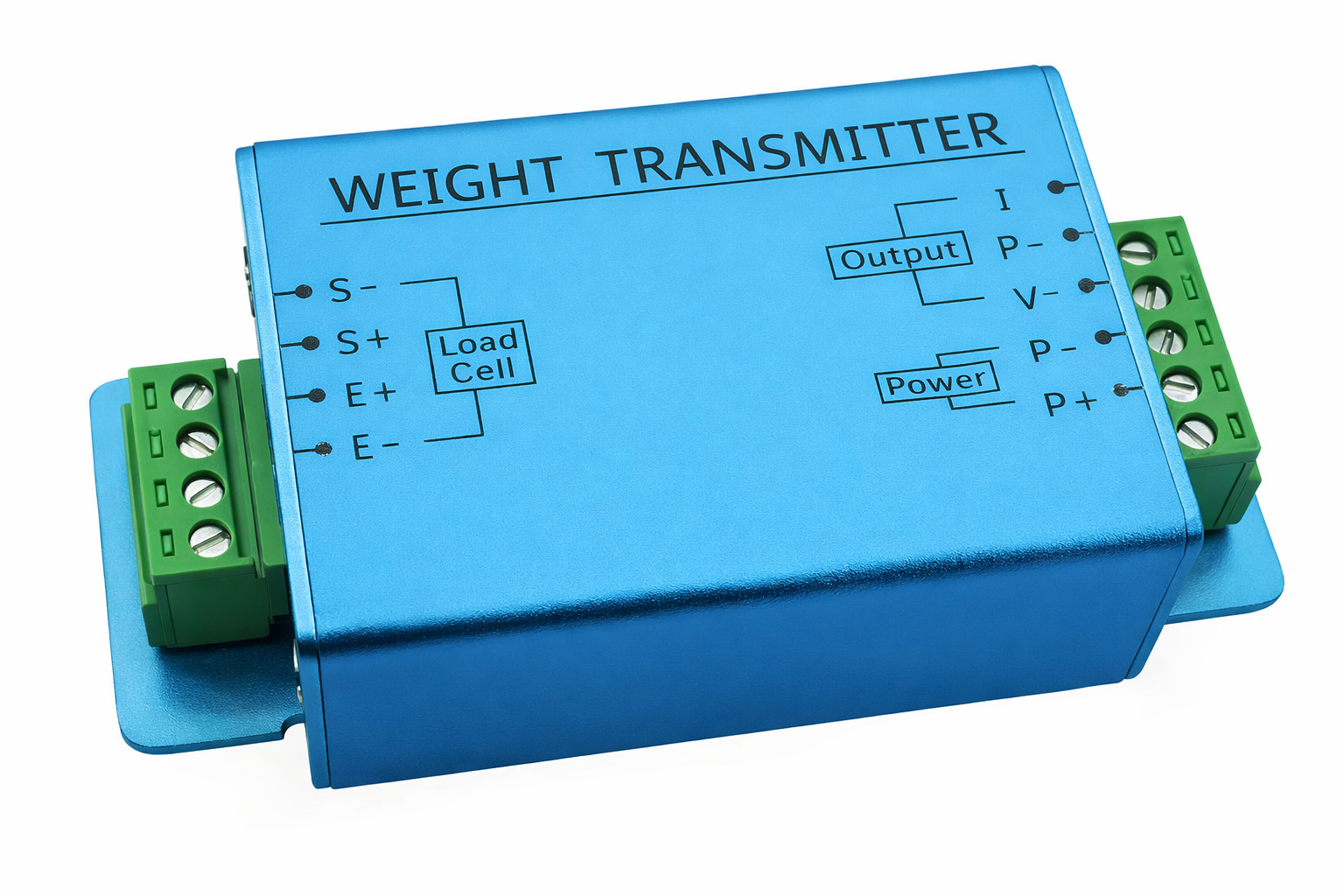

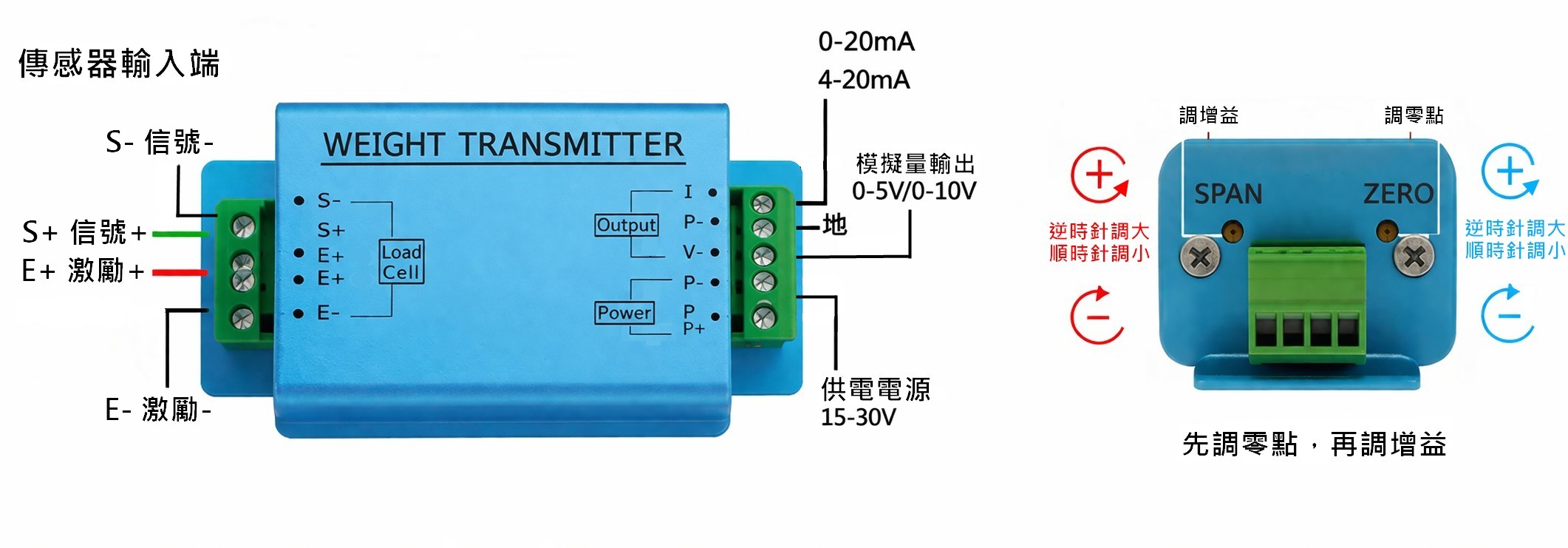

The 510 transmitter is made of aluminum proPle, and the internal part is made of imported high-performance devices. The output signal of the sensor is precisely ampliPed. The internal voltage stabilization, constant current bridge supply, voltage and current conversion, impedance adaptation, linear compensation, humidity compensation, etc. The mechanical and quantitative signals can be converted into standard current and voltage signal output, which can be witched to O+ 5V / 0 + 10V / 4-20mA / 0-20mA. It can be directly connected with utomatic control equipment PLC single chip computer terminal or computer networking. It has the functions of standard signal external zero adjustment, external gain adjustment, input over protection and output short circuit protection.

特性

510變送器採用鋁型材外殼，內部採用原裝進口高性能器件將感測器輸出信號進行精密放大，內部進行穩壓，恒流供橋、電壓電流轉換、阻抗適配、線性補償、濕度補償等。將力學、量轉換成標準電流、電壓信號輸出，可切換0+5V / 0+10V / 4-20mA / 0-20mA。可直接與自動控制設備PLC單片機上位機終端等介面或者電腦聯網。具備標準信號外調零、外調增益功能，輸入過保護，輸出短路保護等特點。
