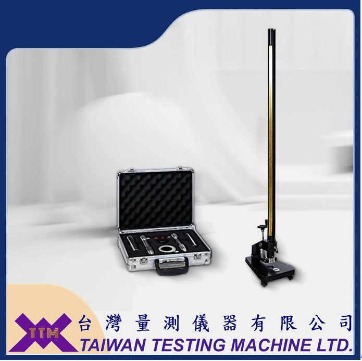

TTM- 2701 ISO 6272 ASTM D 2794 impac tester

Impact test describes a method for evaluating the resistance of a dry film of paint , varnish or related product to cracking or peeling from a substrate when it is subjected to a deformation caused by a falling weight.

The coating under test is applied to suitable, thin(normally metal)panels. After the coating has cured, a standard weight is dropped on the each panel from a height that will cause deformation of the coating and the substrate. The test can be carried out with the coated side of the panel facing upwards(i.e. towards the falling weight)or downwards(i.e away from the weight).By gradually increasing the height from which the weight drops, the point at which failure occurs can be determined . Films generally fail by cracking, which is made more visible by the use of a magnifier.

-The test can be carried out :

---either as a “pass/fail” test, the test being carried out from one drop height and with a specified mass, so as to test compliance with a particular specification.

---or as a classification test, to determine, by gradually increasing the drop height and/or the mass, the minimum mass and/or drop height for which the coating cracks or peels from its substrate.

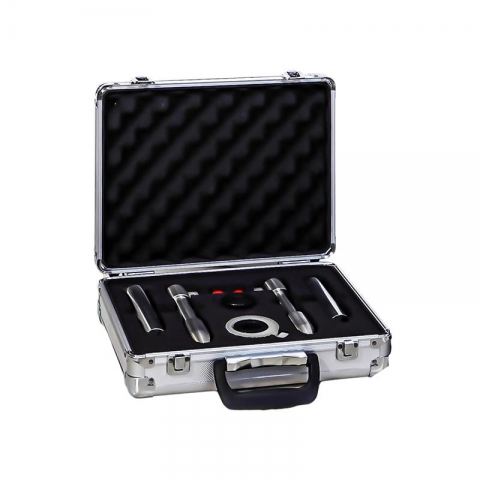

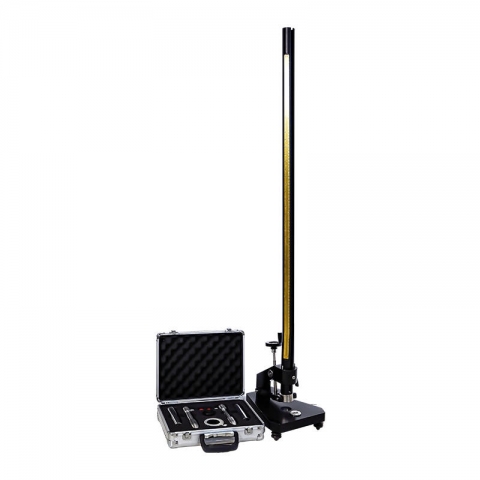

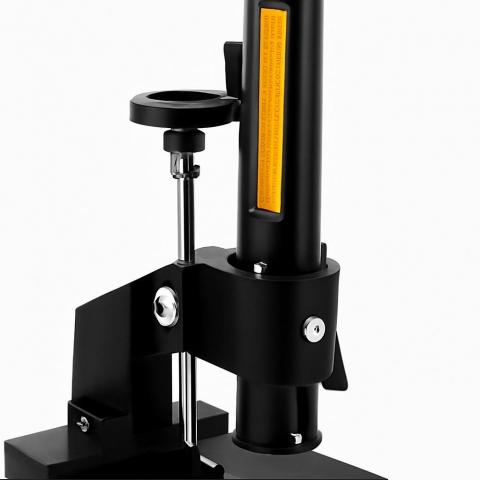

TTM-2701 offers many different types impact testers according to different standards. These impact testers consist of a solid base with a guide tube support, some different weights hammers(falling weights)and some different diameters punches. Users can choose different size and weight hammer to simulate paint used different environments.

-Detail :

-Technical Parameter:


房型 Impact height																																																																0-100 cm (0-40 inch)
房型 Graduation value																																																																1cm
房型 ISO punch																																																																Diameter 20 mm, weight 1000 g
房型 Additional punch																																																																Weighing 1000 g, can be connected to an ISO punch
房型 ISO module seat																																																																Inner diameter 27 mm
房型 ASTM punch																																																																Diameter 15.9 mm, weight 2 Ibs
Additional punch																																																																Weighing 2 pounds, can be connected to an ASTM punch
ASTM mold seat																																																																Inner diameter 17 mm
Depth control loop																																																																1,2 ,4,5 mm
External dimensions																																																																300x300x1400 mm
Shipping weight																																																																30 kg
